913D

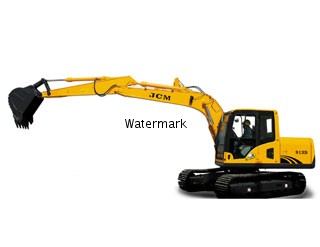

Name: 913D Model: 913D Brief: 913D Hydraulic Crawler Excavator’s Operating Weight is 12.8t, equipped with CUMMINS B3.9-C Engine, with Boom 4.6m, Arm 2.5m, Bucket 0.55m3.

详细介绍

Engine Travel System Model CUMMINS B3.9-C Travel motors DOOSAN/NABTESCO; Variable axial piston motor Type Water cooling, turbocharged, empty enter-cooling Support roller quantities 2×7 Carrier roller quantities 2×1 No. of cylinder 4 Travel shoes 2×44 Bore and stroke 102mm×120mm Travel speed 3.59/5.57km/h Displacement 3.9L Drawbar pulling force 98kN Power output 86kW/2200rpm Grade ability 70% (35°) Ground clearance 425mm Hydraulic System Cab ＆ Control Pump KAWASAKI, Japan Cab All-weather, sound-suppressed Cab and equipped with a heavy, insulated Floor Mat; Front Window can be opened and slid; 6-direction adjustable Seat; LED display, Automatic monitoring, display and warning; cool & hot Air Conditioner Type variable double–piston pump Max. discharge flow 2×108L/min Max. discharge pressure Boom, arm and bucket 31.9MPa Control Two hand levers and two foot pedals for travel Two hand levers for excavating and swing; Electric rotary-type engine throttle Travel circuit 31.9MPa Swing circuit 25.5MPa Control circuit 3.9MPa Boom, Arm ＆ Bucket Pilot control pump Gear type Boom cylinder 105mm×70mm×980mm Main control valve Negative flow control Arm cylinder 115mm×80mm×1175mm Oil cooler Air cooled type Bucket cylinder 95mm×65mm×885mm Swing System Refilling Capacities＆lubrications Swing motor KAWASAKI, Japan Fuel tank 238L Swing motor type Axial-piston motor Cooling system 20L Brake Hydraulic oil released Engine oil 15L Parking brake Hydraulic disc brake Hydraulic oil tank 120L  Tank oil level Swing speed 12.6r/min 208L  Hydraulic system Bucket Type Backhoe bucket Bucket capacity 0.55m3 (SAE) Bucket width 980mm Arm Type A Max. digging depth 8495mm B Max. dumping height 6065mm C Max. digging height 5537mm D Max. vertical digging depth 4907mm E Max. Depth cut for 2440m(8')Level Bottom 5275mm F Max. digging distance 8297mm G Max. digging radius at ground level 8168mm H Min. swing radius of work equipment 2426mm Digging Force (ISO6015)          Unit: kN Arm length 2500mm Bucket digging force 73.5kN Arm digging force 60.8kN Arm Type 2500mm A Overall length 7718mm I Tread 2925mm B Ground contact length (Transportation) 4209mm J Track length 3659mm C Overall height(to top of boom) 2674mm K Track gauge 2000mm D Overall width 2500mm L Track width 2500mm E Overall height(to top of cab) 2752mm M Shoe width 500mm F Counter weight ground clearance 912mm O Bonnet height 2145mm G Ground clearance 425mm P Revolving frame width 2490mm H Tail swing radius 2318mm Q Distance from swivel center to tail 2318mm Operating Weight and Ground Pressure Operating weight includes basic machine (with boom 4.6m, arm 2.5m, and bucket 0.55m3) Shoe width 500mm Overall width 2500mm Ground pressure 39KPa Operating weight 12800kg
