933D

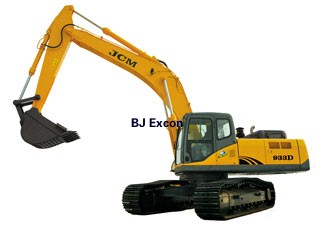

Name: 933D Model: 933D Brief: 933D Hydraulic Crawler Excavator’s Operating Weight is 32.9t, equipped with CUMMINS 6C8.3 Engine, with Boom 6.47m, Arm 3.186m, Bucket 1.4m3.

详细介绍

Engine Travel System Model CUMMINS 6C8.3 Travel motors SBIC, Korea;  Variable axial piston motor TONGMYUNG/NABTESCO, Japan;  Variable axial piston motor Type Water cooling, turbocharged, empty enter-cooling Support roller quantities 2×9 Carrier roller quantities 2×2 No. of cylinder 6 Travel shoes 2×48 Bore and stroke 114mm×134.9mm Travel speed 2.95/5.04km/h Displacement 8.3L Drawbar pulling force 284kN Power output 186kW/2200rpm Grade ability 70% (35°) Ground clearance 530mm Hydraulic System Cab ＆ Control Pump KAWASAKI, Japan Cab All-weather, sound-suppressed Cab and equipped with a heavy, insulated Floor Mat; Front Window can be opened and slid; 6-direction adjustable Seat; LED display, Automatic monitoring, display and warning; cool & hot Air Conditioner Type variable double–piston pump Max. discharge flow 2×265L/min Max. discharge pressure Boom, arm and bucket 34.3MPa Control Two hand levers and two foot pedals for travel Two hand levers for excavating and swing; Electric rotary-type engine throttle Travel circuit 34.3MPa Swing circuit 27.5MPa Control circuit 3.9MPa Boom, Arm ＆ Bucket Pilot control pump Gear type Boom cylinder 140mm×100mm×1480mm Main control valve Negative flow control Arm cylinder 160mm×110mm×1810mm Oil cooler Air cooled type Bucket cylinder 140mm×100mm×1285mm Swing System Refilling Capacities＆lubrications Swing motor KAWASAKI, Japan Fuel tank 600L Swing motor type Axial-piston motor Cooling system 26.5L Brake Hydraulic oil released Engine oil 17—28L Parking brake Hydraulic disc brake Hydraulic oil tank 375L  Tank oil level Swing speed 11.5r/min 500L  Hydraulic system Bucket Type Backhoe bucket Bucket capacity 1.4m3 (SAE) Bucket width 1430mm Arm Type A Max. digging depth 10125mm B Max. dumping height 7082mm C Max. digging height 7340mm D Max. vertical digging depth 7010mm E Max. Depth cut for 2440m(8')Level Bottom 7163mm F Max. digging distance 11084mm G Max. digging radius at ground level 10886mm H Min. swing radius of work equipment 4335mm Digging Force (ISO6015)          Unit: kN Arm length 3186mm Bucket digging force 168.1kN Arm digging force 142.8kN Arm Type  3186mm A Overall length 11172mm I Tread 4030mm B Ground contact length (Transportation) 5823mm J Track length 4932mm C Overall height(to top of boom) 3311mm K Track gauge 2600mm D Overall width 3300mm L Track width 3300mm E Overall height(to top of cab) 3125mm M Shoe width 700mm F Counter weight ground clearance 1233mm O Bonnet height 2677mm G Ground clearance 530mm P Revolving frame width 3015mm H Tail swing radius 3438mm Q Distance from swivel center to tail 3438mm Operating Weight and Ground Pressure Operating weight includes basic machine (with boom 6.47m, arm 3.186m, and bucket 1.4m3) Shoe width 700mm Overall width 3300mm Ground pressure 52.3KPa Operating weight 32900kg
